README

PopPsiSeqR is a package intended for analyzing the results of evolution & resequencing experiments. It builds on previous software published in @Earley2011. Offspring allele frequency spectrum is compared to the parental populations’ spectra and their expected equilibrium, in order to detect selected-for genomic regions.

Installation

# install.packages("pak")
pak::pak("csoeder/PopPsiSeqR")

Example

library("PopPsiSeqR")

merged_frequencies.filename <- system.file("extdata",
  "merged_frequencies.example_data.tbl", package = "PopPsiSeqR")
merged_frequencies.bg <- import.freqtbl(merged_frequencies.filename)

frequency_shifts.bg <- freqShifter(merged_frequencies.bg)


head(frequency_shifts.bg %>% as.data.frame()
     %>% dplyr::select(-c(ends_with("_count"), ends_with("_deltaF"),  "name", "score"))
     %>% GenomicRanges::GRanges(), n=5)
#> GRanges object with 5 ranges and 10 metadata columns:
#>       seqnames    ranges strand |         ref         alt
#>          <Rle> <IRanges>  <Rle> | <character> <character>
#>   [1]    chr2L  10000208      * |           G           A
#>   [2]    chr2L  10000682      * |           T           C
#>   [3]    chr2L  10000709      * |           A           G
#>   [4]    chr2L  10000725      * |           G           A
#>   [5]    chr2L  10000933      * |           A           T
#>       selected_parent_alt_af backcrossed_parent_alt_af offspring_alt_af
#>                    <numeric>                 <numeric>        <numeric>
#>   [1]               0.277778                         0                0
#>   [2]               0.166667                         0                0
#>   [3]               0.250000                         0                0
#>   [4]               0.000000                         1                1
#>   [5]               0.000000                         1                1
#>         central mean_oriented_shift max_oriented_shift min_oriented_shift
#>       <numeric>           <numeric>          <numeric>          <numeric>
#>   [1] 0.1388890          -0.1388890           0.861111         -0.1388890
#>   [2] 0.0833335          -0.0833335           0.916667         -0.0833335
#>   [3] 0.1250000          -0.1250000           0.875000         -0.1250000
#>   [4] 0.5000000          -0.5000000           0.500000         -0.5000000
#>   [5] 0.5000000          -0.5000000           0.500000         -0.5000000
#>       AF_difference
#>           <numeric>
#>   [1]      0.277778
#>   [2]      0.166667
#>   [3]      0.250000
#>   [4]      1.000000
#>   [5]      1.000000
#>   -------
#>   seqinfo: 1 sequence from an unspecified genome; no seqlengths

The input data in this case is a table containing allele frequencies for the selected and backcrossed parental population, and those of the offspring population. This table was produced by joining the output of VCFtools’ --freq utility, reformatted as BED files and filtered to remove non-informative sites.

# calculating allele frequencies and converting to BED format
vcftools --vcf {input.vcf_in} --out {output.report_out} --freq;
cat {output.report_out}.frq | tail -n +2 | awk -v OFS='\\t' \
  '{{print $1,$2,$2+1,$4,$5,$6}}' > {output.frq_out}


# joining the frequency tables
bedtools intersect -wa -wb -a {input.slctd_frq} -b  {input.bckcrssd_frq} \
  | bedtools intersect -wa -wb -a - -b  {input.off_frq} \
  | cut -f 1,2,4-6,10,12,16,18 | tr ":" "\\t" \
  | awk -v OFS='\\t' '{{if(($6==$9) && ($9==$12) && ($7!=$10) )
  print $1,$2,$2+1,"0","0","+",$4,$6,$3,$7,$8,$10,$11,$13}}' \
  > {output.frqShft_out}.tmp

Once these frequencies have been collated, they can be loaded with import.freqtbl(). The output can be easily written to disk with export.freqshft(), where they can be averaged over genomic intervals with utilities like bedtools map

bedtools makewindows -w {wildcards.window_size} -s {wildcards.slide_rate} -g {fai_path} -i winnum \
  | bedtools sort -i - > {output.windowed}

bedtools map -c 7,8,9,10,11,12,12 -o sum,sum,sum,sum,sum,sum,count -null NA -a {input.windows_in} \
  -b <( tail -n +2  {input.frqShft_in}   | cut -f  1-3,15-20 | nl -n ln  | \
  awk -v OFS='\t' '{{if( $5!="NA" && $6!="NA")print $2,$3,$4,$1,"0",".",$5,$6,$7,$8,$9,$10}}' \
  | bedtools sort -i - ) > {output.windowed_out}

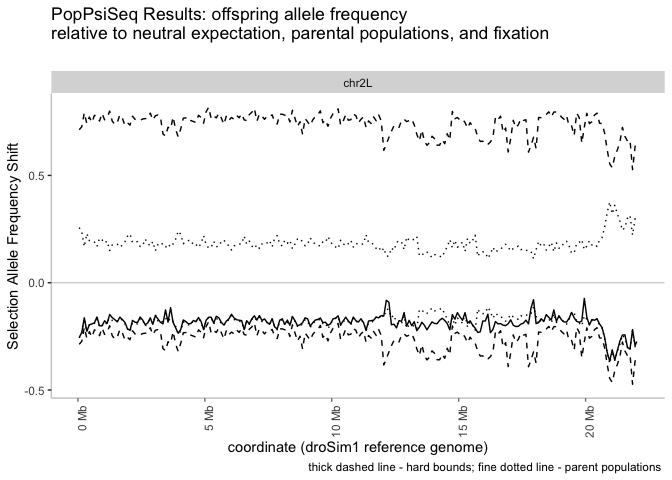

These smoothed data can be reloaded with import.smvshift(). A default plot of these smoothed data can be produced with the windowedFrequencyShift.plotter() function.

windowed_shifts.filename <- system.file("extdata", "windowed_shifts.example_data.bed",
  package = "PopPsiSeqR")

windowed_shifts.bg <- import.smvshift(windowed_shifts.filename, selected_parent = "sim",
  backcrossed_parent = "sech")

windowedFrequencyShift.plotter(windowed_shifts.bg,
  selected_parent = "sim", backcrossed_parent = "sech", main_title =
  "PopPsiSeq Results: offspring allele frequency\nrelative to neutral expectation, parental populations, and fixation")

Finally, a simple comparison can be made between the results from different experiments by calculating their arithmetic difference using the subTractor() function:


lab_sechellia.filename <- system.file("extdata",
  "wild_sechellia.example_data.bed", package = "PopPsiSeqR")
lab.bg <- import.smvshift(lab_sechellia.filename)
lab.bg$sechellia <- "lab"


wild_sechellia.filename <- system.file("extdata",
  "lab_sechellia.example_data.bed", package = "PopPsiSeqR")
wild.bg <- import.smvshift(wild_sechellia.filename)
wild.bg$sechellia <- "wild"



sub.traction <- subTractor(lab.bg, wild.bg ,treament_name = "sechellia")

# autoplot(sub.traction, aes(y=lab_minus_wild), geom="line"
#   ) + labs(y="Difference in Allele Frequency Shift\n(lab - wild)",
#   title = "Difference between PopPsiSeq analyses based on lab-reared and wild-caught sechellia",
#   subtitle = "", caption ="",x= "coordinate (droSim1 reference genome)"
#   ) + theme_clear()
